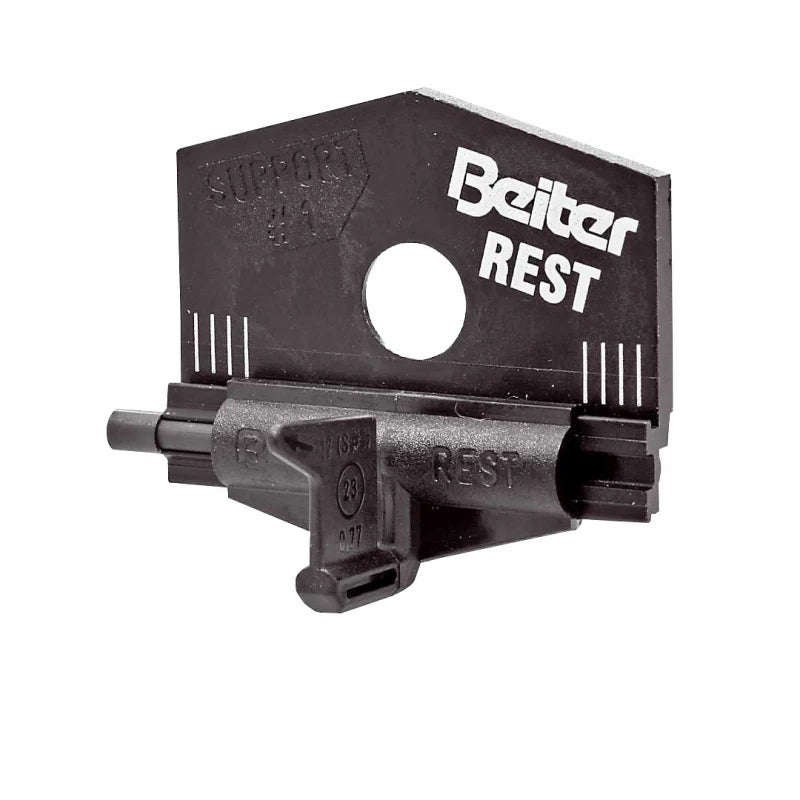

Beiter Rest

Beiter Rest

£30.86 GBP
£30.86 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Normally despatched by next working day.
Size

The Beiter Rest for Recurve was the first Arrow Rest designed by Werner Beiter sold on the archery market.

Years of testing, many prototypes, hundreds of High Speed Films have helped to develop this first Beiter arrow rest for Recurve Bows.

Some very important notes about the Beiter Rest for Recurve:

  • It has been designed to be used for both left- and right-handed archers!
  • It may be changed within seconds, for example from Carbon to Aluminium Shafts!
  • A scale on the Support allows a re-producible position of the Finger. Therefore the height adjustment of the Beiter Rest is extremely precise: the Nocking Point can be raised or lowered within seconds and by less than 1mm! The position of the arrow on the Plunger Tip as well!
  • The Beiter Rest for Recurve makes no noise! (according to our test archers!)

The Support has incorporated a revolutionary Guiding System for the Finger, which may change position, carried by a specific designed Spindle.
Due to the Support being applied with a specific angle (max ca. 15°), the Arrow Position versus the Plunger and the Nocking Point may be determined and changed very quickly and more precise than with any other Rest on the market! A Scale offers the opportunity to re-position the Finger after tests or changes.

Popular sizes include...

  • 15-12-0,65 for shafts with small diameter, Ø 5,2mm +/-1mm (10/64"-14/64")
  • 16-17-0,65 for shafts with medium diameter Ø 7,8mm +/-1mm (approx. 15/64"-19/64")
  • 17-23-0,77 for shafts with large diameter Ø 9,3mm +/-1mm (approx. 20/64"-24/64")
  • Two Finger (of the same make) are included in each Box, but extra Fingers are available as spare part.

3 Supports are available, differing in their thickness, to have the desired arrow position on bows with different cut-outs: #S1, #S2 (= #S1 + 1mm), #S3 (= S#1 + 2mm).


Please note as folllows:
  • On the Finger you will find some details to determine the used model: The number "15 (S #1)" respectively "17 (S #1)" tells, that this finger may be used up to arrow to handle distance 15mm respectively 17mm (Dist. "A").
  • The circled number tells, which arrow diameter will best fit for the use: 12 from 10/64" to 14/64", 23 from 20/64" to 24/64".
  • The number at the bottom of the finger (e.g. 0,65), informs about the thickness of the finger.

   For the use of the Beiter Rest we suggest:
  • Beiter Plunger: it has the same diameter (Ø 6,0mm) as the centering hole of the Beiter Rest. This allows an extremely precise positioning of the Beiter rest on the bow.
  • Nock Position: Turn the nock so that the vanes are in a "Y-Position" to the string.  In this position you may reach the best possible clearance and the arrow may pass the bow-window without interference!



Beiter Rest Data Sheet: https://www.wernerbeiter.com/en/information-downloads/datasheets/Rest_GB.pdf
