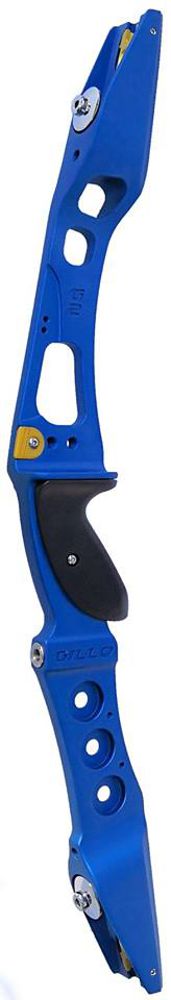

Gillo G2K 25in riser

Gillo G2K 25in riser

£312.49 GBP
£312.49 GBP
Sale Sold out
Taxes included.
1pc RH Black in stock.
Left or Right Handed
Colour
Size

Upgraded for 2019. The popular G2 riser from the Gillo Gold Medal range launched by 11 time World Champion Michele "Gillo" Frangilli.

100% milled from an aluminium 6061 T6 bar, the lower cost Gillo G2 shares many features with the G1 riser. With plenty of optional accessories to convert from Olympic to Barebow style including the G1 covers. Matte finish colours as standard. Accepts ILF limbs.



  • Olympic style Recurve & Bare Bow riser
  • Riser length: 25in
  • RH and LH models.
  • Material: 100% milled from an Aluminium 6061 T6 bar
  • Matte surface anodized colours
  • Limb alignment system
  • Stainless steel limbs bolts
  • Stainless steel front long rod bushing, 5/16-24 tapped
  • ABS plastic molded Black color medium grip (RH versions), 3D printed plastic Black medium grip (LH versions)
  • 2 front and 1 back short stabs holes, 5/16-24 tapped
  • Approx. 1240 gr total
  • Can accept covers and grips from G1 riser system
  • Gold colour 3D printed clicker plate
  • Packing includes long clicker plate, warranty card, manual, 5 Allen wrenches , 5 x M4 stainless steel screws
  • Gillo Product Code: G02K-RS-25



    Colours:

    • RH Black
    • RH Blue
    • RH Green
    • RH Grey
    • RH Orange
    • RH Purple
    • RH Red
    • LH Black
    • LH Blue
    • LH Purple
    • LH Red



    Optional accessories available:

    • G04-DK6-SS-GO - 6 x Stainless Steel Disk weight kit, Gold color
    • G04-DK6-AL-BK - 6 x Aluminum Disk weight kit, Black color
    • G01-DK6 - 6 x Stainless Steel Disk weight kit
    • G05-DK2 - 2 x steel Disk heavy weight kit
    • G01-BW-01-AL - Aluminum 270 gr Bare Bow cover
    • G01-BW-02 - Aluminum and Aluminum/Steel bare Bow covers
    • GRS-03-27 - Riser protecting sleeve
    • Various color caps kits to fit weights holes
    • Various grips made by wood or color 3D printed plastic
    • Various cliker plates 3D printed in different colors



    Hole Thread sizes:

    • Limbs Bolts - 2 x 5/8-18 UNF
    • Alignment plate inner locking - 2 x M6
    • Alignement plate side locking - 4 x M5
    • Front and back stabs - 4 x 5/16-24 UNF
    • Cushon plunger - 2 x 5/16-24 UNF
    • Clicker and Cliker plate - 3 x M4
    • Sight - 2 x 10-24
    • Grip - 2 x M4
    • Cover - 4 x M4
